Ugreen

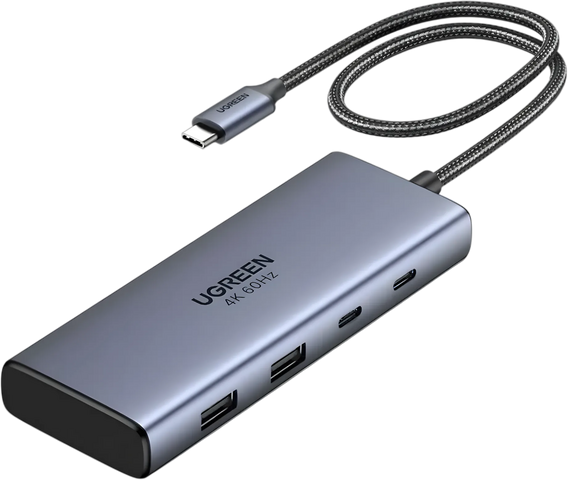

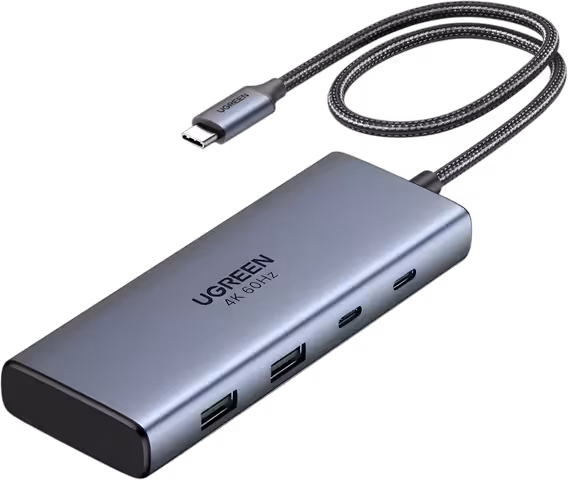

UGREEN CM498 7-in-1 Dual USB-C Hub with Dual HDMI 4K@60Hz

UGREEN CM498 45379 7-in-1 USB-C hub features dual HDMI, 2 USB-C and 2 USB-A 10Gbps ports, plus up to 100W PD charging.

About the product

Key Features

Dual-screen workspace for compatible laptops
High-speed connections for external storage
USB-C Power Delivery pass-through charging
Compact aluminium construction

UGREEN CM498 7-in-1 Dual USB-C Hub with Dual HDMI 4K@60Hz

Build a more capable workstation around your laptop with the UGREEN CM498 hub. Designed for users who need external displays, fast storage access and convenient peripheral connections, this adapter brings essential desktop functions together through a USB-C connection. Whether you are editing videos, managing multiple applications or organising your gaming setup, it helps reduce cable swapping and keeps your equipment within reach.

UGREEN CM498 Hub: More Ways to Work

Productive Display Setup Arrange compatible external screens around your laptop for presentations, creative projects and multitasking.
External Storage Connect compatible SSDs and flash drives to move project files, game captures and other large media.
Desk Accessories Keep your keyboard, mouse and other supported USB peripherals connected while working.
Charging While Connected Use a compatible USB-C PD power supply to keep a supported laptop powered while using the hub.

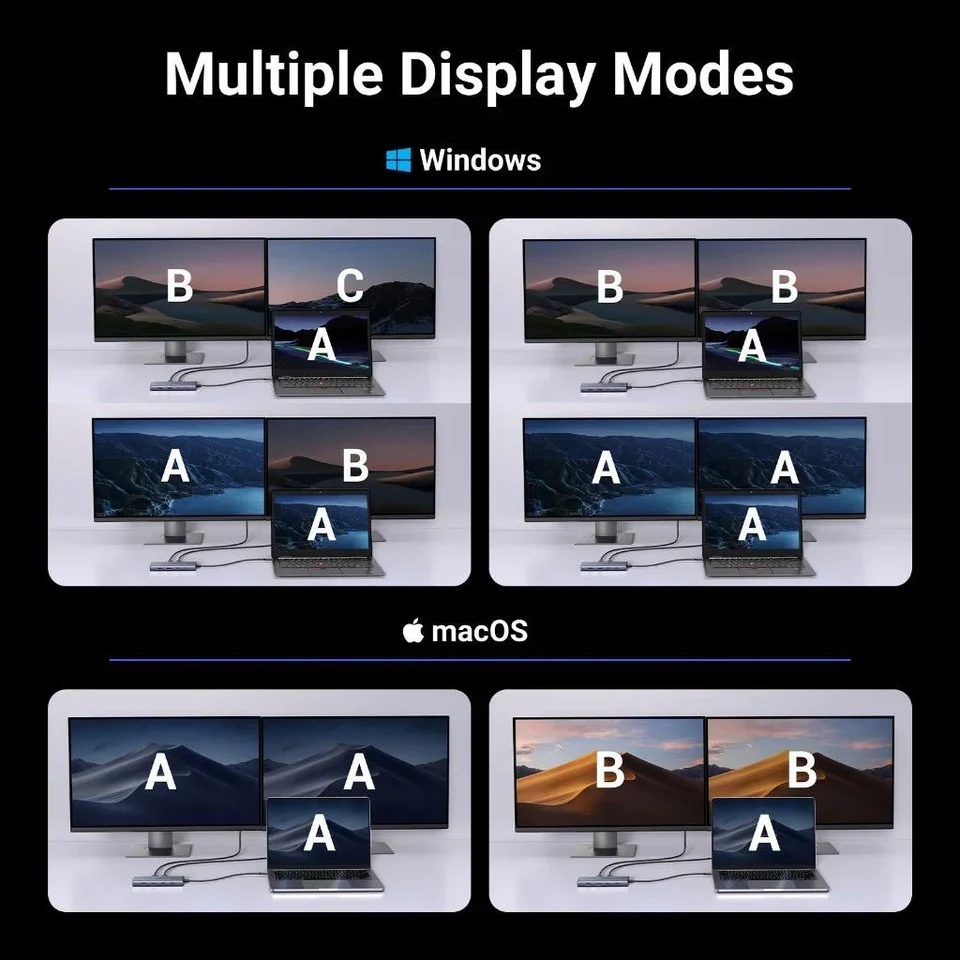

Dual Displays: Windows and macOS

Windows

On compatible Windows systems, MST (Multi-Stream Transport) can provide independent extended desktops across the external HDMI displays. This is useful when keeping separate applications, editing timelines or documents visible simultaneously. Actual display arrangements depend on the computer's graphics and USB-C video capabilities.

macOS

Compatible Mac computers can send video to both HDMI displays, but the external monitors mirror the same image rather than functioning as independent extended desktops through this hub. Check your Mac's supported external-display configuration before planning a multi-monitor workspace.

A video-capable USB-C host is essential; the hub cannot add display output to a data-only connection.

High-Speed File Transfers

10 Gbps

Maximum theoretical USB 3.2 data transfer rate on compatible high-speed ports

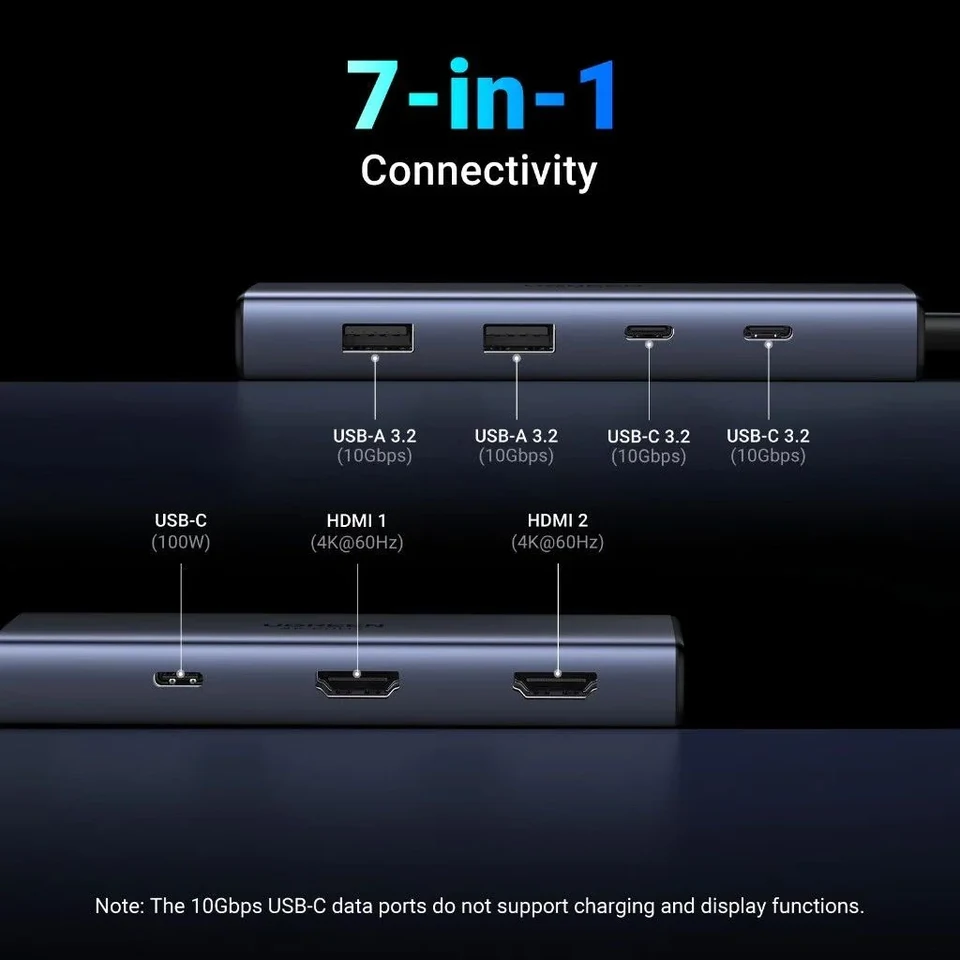

Know Your USB-C Connections

Which Port Should You Use?

Where should the USB-C PD charger connect?

Answer: USB-C PD
Which port should you use for a USB-C data device?

Answer: USB-C 3.2

Connect Your Workstation

Simple Setup Guide

Connect the Hub Plug the attached USB-C host connector into a compatible laptop or computer.
Attach Your Displays Connect your HDMI monitors using suitable cables. Select the correct monitor inputs and supported display settings.
Add Your Accessories Connect your USB peripherals and storage devices to the appropriate data ports.
Configure Your Workspace Select the display arrangement supported by your operating system and connected hardware.

Technical Specifications

Technical Details

Manufacturer SKU	45379
Host Connection	USB Type-C
HDMI Outputs	2 × HDMI, up to 4K@60Hz each
USB-A Data Ports	2 × USB-A 3.2
USB-C Data Ports	2 × USB-C 3.2
USB-C Power Delivery	Up to 100W input
Maximum Laptop Charging Output	85W
Housing	Aluminium

Additional Connection Details

Backward USB CompatibilitySupports compatible USB 3.0, USB 2.0 and USB 1.1 devices. Yes
USB-C Data Ports Provide Video OutputThe dedicated USB-C data sockets are not display outputs. No
USB-C Data Ports Support Device ChargingThese sockets are specified for data connections, not charging. No
Integrated Ethernet or Card ReaderThe verified port configuration does not include Ethernet, SD or TF connections. No

Frequently Asked Questions

Does this dual HDMI hub work with every USB-C laptop?

Not necessarily. HDMI output requires a computer with compatible video-over-USB-C capabilities, such as DisplayPort Alt Mode. Check your laptop's specifications before purchasing.

Can a USB-C docking station run displays and USB accessories together?

Yes, provided the host supports the required functions. The available display modes and transfer performance depend on the computer and connected equipment.

Is a 7-in-1 USB-C hub the same as a Thunderbolt docking station?

No. This model is a USB-C multiport adapter. It does not promise Thunderbolt-only capabilities or additional display functions beyond its verified specifications.
